Khetan Group

Cesement Systems

Home /  Door & Window / Casement Systems

Door & Window Architecture Series

Casement Systems

KHETAN AJEYA Casement Systems are designed for modern homes, bungalows and apartments requiring strong sealing performance, smooth operation, and clean architectural aesthetics. With SGU & DGU compatibility and Euro-groove hardware flexibility, the systems offer durability and long-lasting comfort for both indoor and outdoor applications.

Casement System

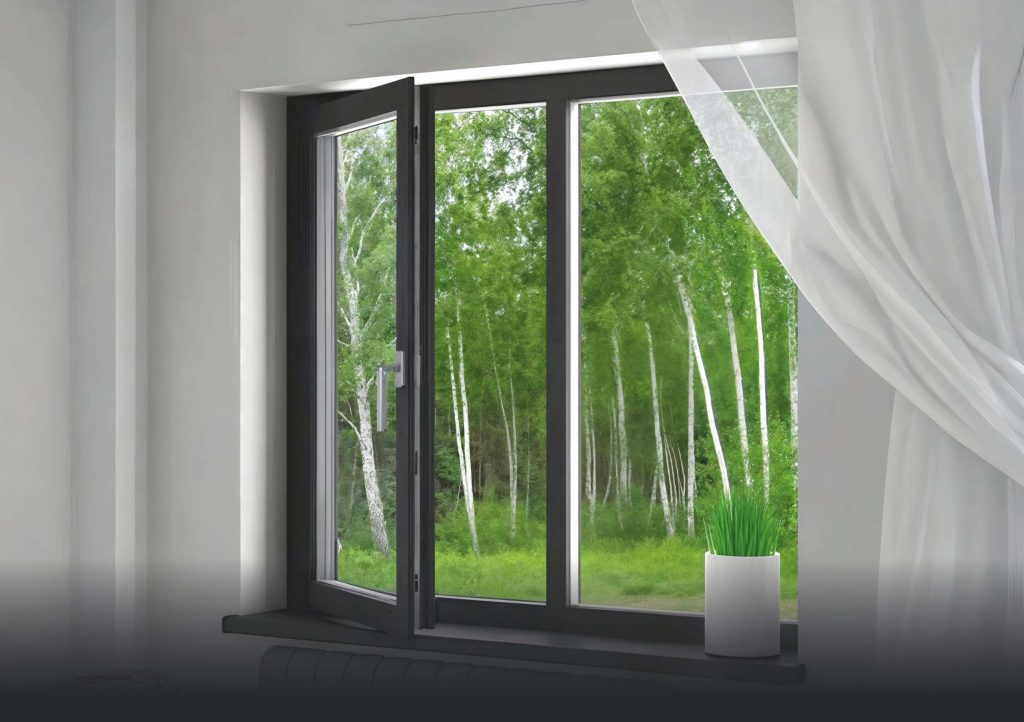

40mm Casement Window

AJEYA 40mm series casement is a perfect match for all your window requirements, offering a full range of indoor and outdoor application options. The system also supports both-way openable functionality, making it suitable for modern homes, bungalows and apartments.

Excellent sealing characteristics are achieved with SGU & DGU glass options. The Euro-groove compatible design gives fabricators the freedom to choose from a wide range of hardware and design configurations.

Technical Specification

  • Frame: 40mm
  • Locking: Single Point
  • Corner: 45°
  • Joint: Corner Connector
  • Overlapping: 6mm
  • Glass Range: 6mm to 24mm
  • Maximum Height: 1500mm
  • Maximum Width: 600mm
  • Finish: Anodize / Powder Coating / Wood
Both-way opening SGU & DGU compatible Excellent sealing Euro-groove hardware Indoor & outdoor use
Casement System

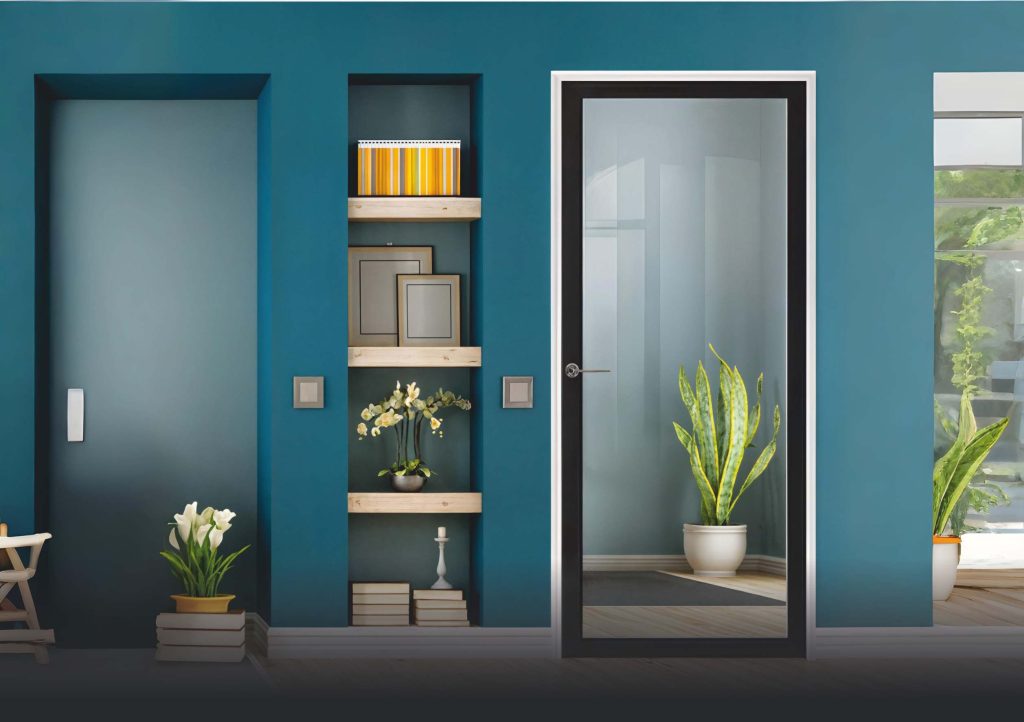

40mm Casement Door

AJEYA 40mm series casement door is designed to meet all your indoor and outdoor opening needs. Ideal for modern homes, bungalows and apartments, it provides excellent performance with SGU & DGU sealing characteristics.

The Euro-groove compatible profile design allows fabricators to choose from various hardware options, delivering smooth operation and durability.

Technical Specification

  • Frame: 40mm
  • Locking: Single Point
  • Corner: 45°
  • Joint: Corner Connector
  • Overlapping: 6mm
  • Glass Range: 6mm to 24mm
  • Maximum Height: 2130mm
  • Maximum Width: 750mm
  • Finish: Anodize / Powder Coating / Wood
Indoor & outdoor opening High sealing Euro-groove hardware SGU & DGU options Modern door design
Casement System

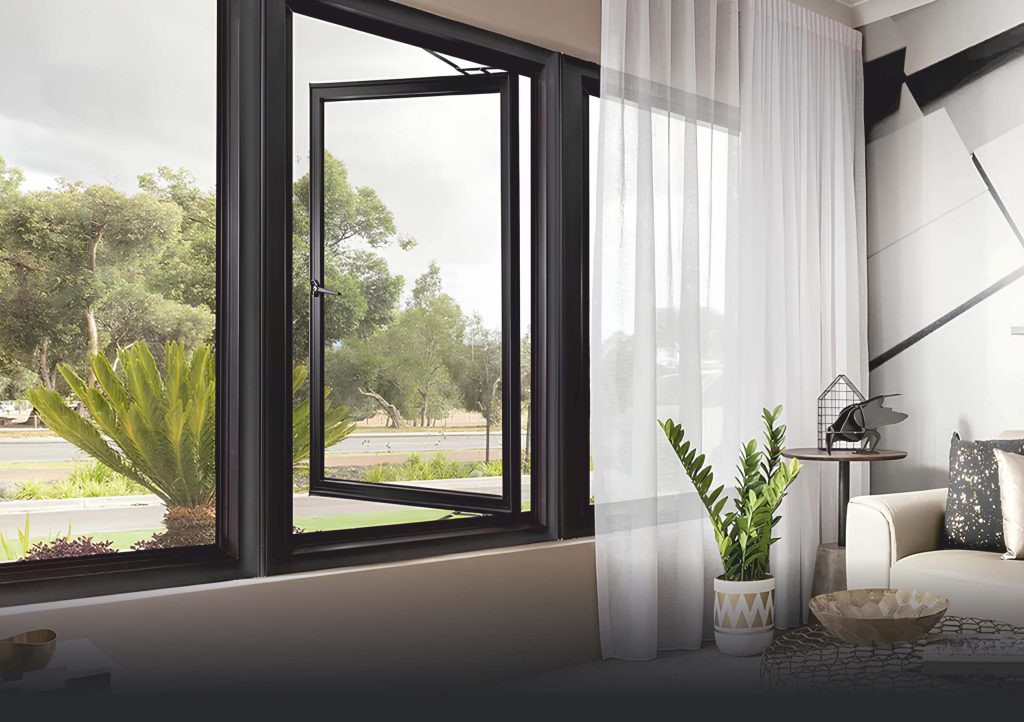

50mm Casement Window

AJEYA 50mm series casement is the ideal blend of strength and style. It supports full indoor and outdoor opening, making it suitable for modern homes, bungalows and apartments.

The system provides excellent sealing performance with SGU & DGU glass configurations. Euro-groove compatibility gives fabricators complete freedom in hardware selection and design flexibility.

Technical Specification

  • Frame Depth: 50.7mm
  • Locking Type: Single & Multiple
  • Corner: 45°
  • Joint: Corner Connector
  • Glass Range: 6mm to 38mm
  • Overlapping: 6mm
  • Maximum Height: 3050mm
  • Fixed Sightline: 47mm
  • Openable Sightline: 97mm
  • Finish: Anodize / Powder Coating / Wood
High strength frame SGU & DGU compatible Euro-groove design Large opening support Premium sealing
Casement System

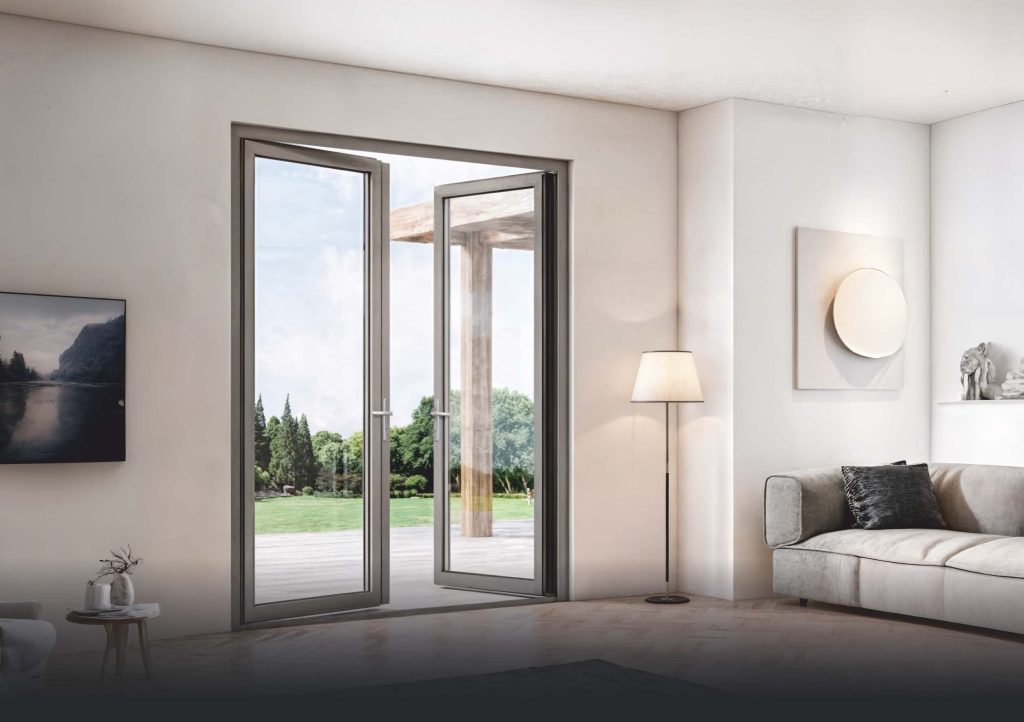

50mm Casement Door

AJEYA 50mm series casement door delivers strength and premium style for large indoor or outdoor openings. Suitable for modern homes, bungalows and apartments, the system supports both way opening with durable performance.

With SGU & DGU compatibility and Euro-groove hardware support, fabricators gain complete flexibility in design and hardware selection.

Technical Specification

  • Frame Depth: 50.7mm
  • Locking Type: Single Point & MultiPoint with Handle
  • Glass Range: 5mm to 38mm
  • Corner: 45°
  • Joint: Corner Connector
  • Overlapping: 6mm
  • Maximum Height: 3050mm
  • Fixed Sightline: 73mm
  • Openable Sightline: 142mm
  • Finish: Anodize / Powder Coating / Wood
Large door openings Multipoint locking Euro-groove hardware Premium sealing performance SGU & DGU compatible

Download Casement Systems Brochure

Access the complete KHETAN AJEYA Casement Systems catalogue including technical drawings, section diagrams, glass ranges and hardware options.

⬇ Download Casement Brochure (PDF)

Need Expert Guidance?

Our specialists can help you choose the perfect KHETAN AJEYA Casement System for your project. Get technical drawings, detailed specifications, glass compatibility, hardware options and configuration support tailored to your requirement.
